CORSAIR II

Manufacturer:

VOUGHT

Markings:

VA-46, USS John F. Kennedy, 1991

Designation:

A-7E

Serial Number:

160713

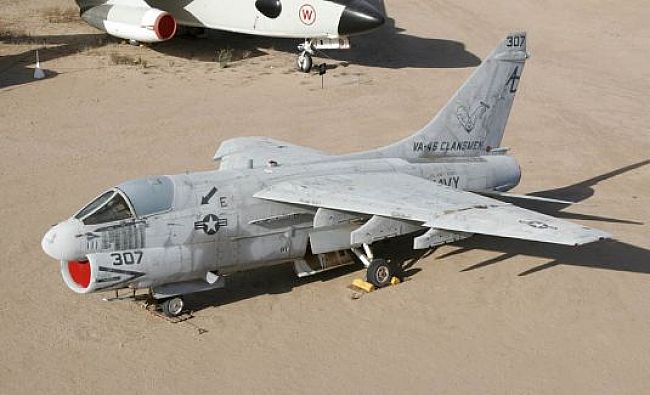

VOUGHT A-7E CORSAIR II

The A-7 Corsair II was initially developed in response to a 1963 U.S. Navy requirement for an aircraft to replace the Douglas A-4 Skyhawk. Since the Navy wanted the aircraft to be in service by 1967 speed of development was essential. The Vought company based their contract winning design on their F-8 Crusader which was already in Navy service. The prototype flew in 1965 and the first A-7 squadron entered combat in Vietnam in December 1967. The plane proved to be wildly successful as a close air support and strike aircraft. In 1968, the A-7D version of the Corsair II went into production. At the same time production began of the A-7E version for the Navy. These last two versions of the Corsair II are basically identical with the main difference being the equipment installed in the "E" for carrier operations.

Specifications

  • Wingspan: 38 ft 8 in
  • Length: 46 ft 1 in
  • Height: 16 ft 1 in
  • Weight: 39,325 lbs (loaded)
  • Max. Speed: 663 mph
  • Service Ceiling: 33,500 ft
  • Range: 3,044 miles
  • Engines: 1 Allison TF41-A-1 turbofan with 14,800 pounds of thrust
  • Crew: 1
