NEPTUNE

Manufacturer:

LOCKHEED

Markings:

VAH-21, Sangley Point, Philippine Islands and Cam Ranh Bay South Vietnam, 1968

Designation:

AP-2H

Serial Number:

135620

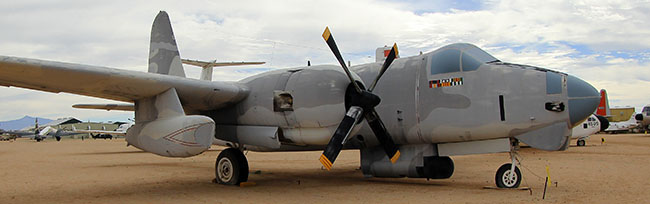

LOCKHEED AP-2H NEPTUNE

Designed as a long-range anti-submarine patrol plane the Neptune first flew on May 17, 1945 and P2V-1s and -2s entered service with the U. S. Navy in March 1947. Steady technological upgrades and new orders kept the Neptune in production until April 1962. The final production version, the P2V-7 (later P-2H), began coming off the assembly line in 1954 and was the first version built with underling jet engines. The AP-2H designation was applied to four heavily modified SP-2H aircraft for a special program during the Vietnam War. This program, the Trails Roads Interdiction Multisensor (TRIM) Project was designed to use then new technologies such as FLIR (Forward Looking Infra-Red) and LLLTV (Low Light Level Television) to track and attack North Vietnamese supplies and troops along the Ho Chi Minh Trail.

Specifications

  • Wingspan: 103 ft 10 in
  • Length: 81 ft 7 in
  • Height: 29 ft 4 in
  • Weight: 75,500 lbs (loaded)
  • Max. Speed: 345 mph
  • Service Ceiling: 22,000 ft
  • Range: 2,200 miles
  • Engines: 2 Wright R-3350-32W, 3,500 hp each
  • Crew: 9
